Seperated Pressurized Solar Water Heater

1.The upright tank can make the water temperature to a high level. It can hot the water instantly.

2.The tank inside the building, the hot water loses less energy than the normal one.

3.The heater collector and the water tank is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around.

4.Back up with electric heater so that in the day without sunshine hot water can also be used.

5.Can be combined with gas or electric heater.

6.Max. Pressure: 12bar; Operating Pressure: 6 bar.

7.It can be used for other function, such as waring.

Specification

1.Inner tank: SUS304 2B food grade stainless steel.

2.Outer tank: white color steel or Stainless steel.

3.Insulation:  55--60mm imported PU.

4.Copper coil:15m each, diameter 12mm,thickness 1mm.

5.Heatpipe: Ati-freeze:-35C

6.Capacity:100L,150L,200L,250L,300L,400L,500L

Working Station

1. Operating screen

2. Manometer

3. Pump speed adjust switches

4. Temperature difference circulation pump

5. Flow rate indicator

6. Return circuit connector

7. Safety valve

8. Expansion vessel connector

9. Return circuit connector

10. Wall mounting

11.Expansion vessel:5L,8L,12L,19L,20L,24L,10 bar pressure

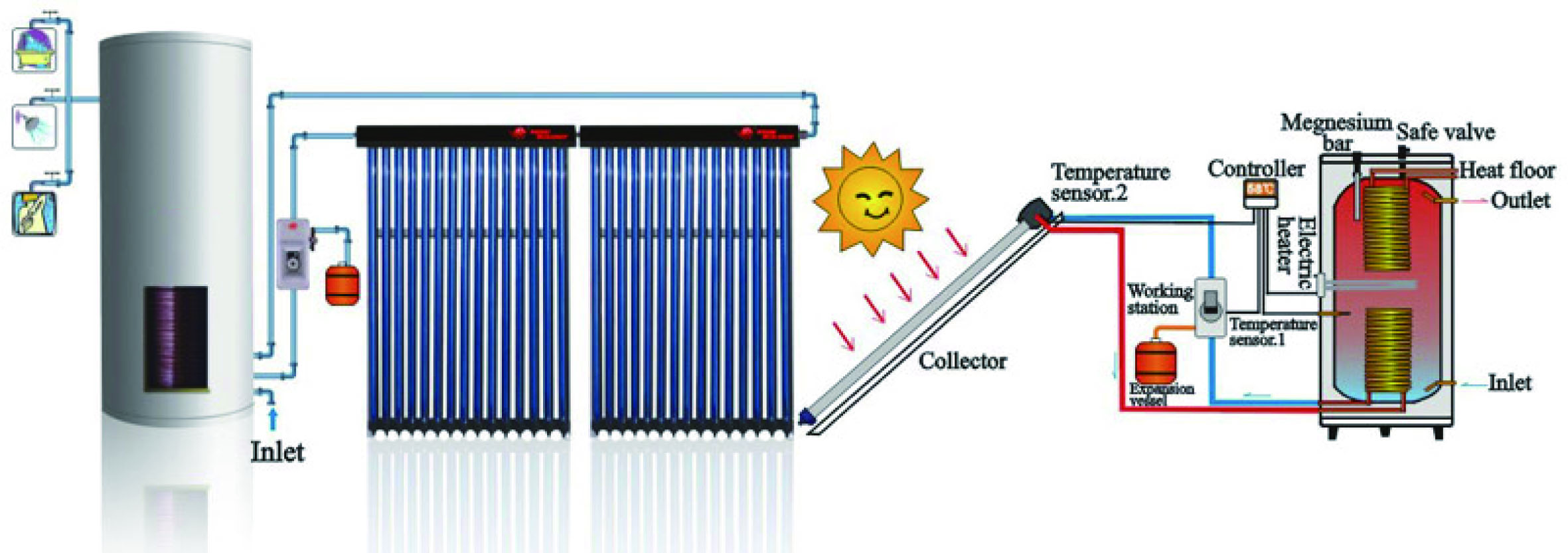

Working principle

The collector absorbs solar energy and transmits it to the water tank through circulation.When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.The circulation pump makes heat-conducting liquid circulate automatically.
