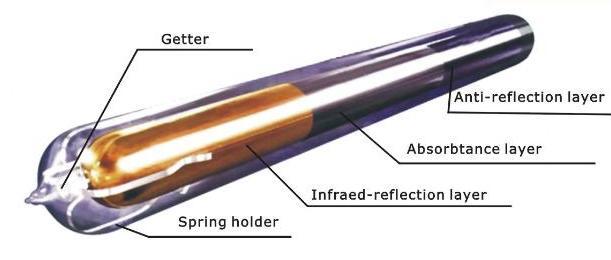

Tri-element Vacuum Tube
Features:
Vacuum Tube technology:
Models 47mm 1500mm 58mm 1800mm
Weight 1.35kg 2.29kg
Structure All-glass-coaxial All-glass-coaxial
Double-layer tubes double-layer tubes
Outer tube diameter 47mm 58mm
Inner tube diameter 37mm 47mm
Outer Tube thickness 1.6mm 1.8mm
Inner tube thickness 1.6mm 1.8mm
Material of coating Al N/Al N-SS/Cu Al N/Al N-SS/Cu
Absorptance 0.94~0.96 0.94~0.96
Emittance 0.04~0.06 0.04~0.06
Vacuum P≤5*10-3pa P≤5*10-3pa
Stagnation temperature 270~300 270~300(height)
Heat-loss coefficient ≤0.6w/ m2) ≤0.6w/ m2)
Bearing hailstone ability 25mm 25mm
Pressure-endure ability 1MPa 1MPa
